Replace nozzle heater- Mini ES

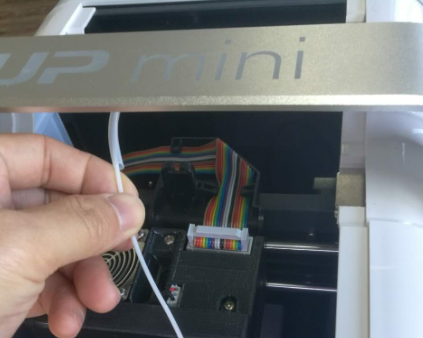

1. Withdraw the filament: open the upper cover and withdraw the filament

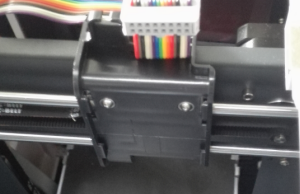

2. Power off the printer, pull out the extruder CFC cable

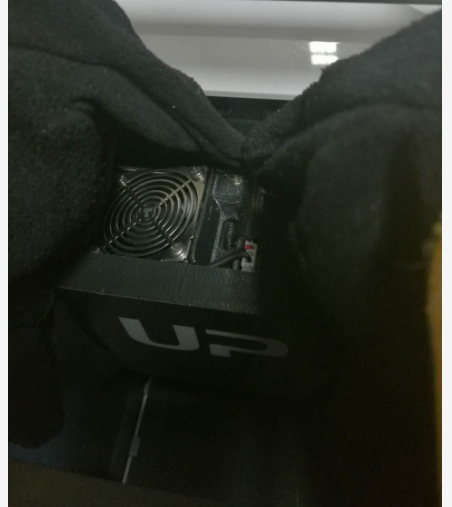

3. Remove the extruder: push the extruderupwards with both hands(Note that after the temperature of the nozzle is lowered to room temperature, please wear gloves when operating)

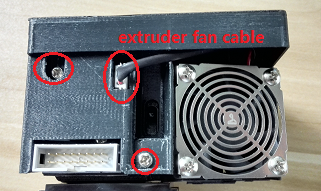

4. Unplug the extruder fan, and use a Phillips screwdriver to remove the 2pcs screw

5.删除挤出机的内部组件shown

6. After removing the nozzle heater connector, use a 2.5mm hex wrench to loosen the 2pcs screw and remove it.

Note:

1. Please wear gloves to avoid unnecessary scratches, burns;
2. Please operate after the nozzle temperature drops to room temperature.
